Writing Test Cases

A flow that calls a payment API can only be run where that API is. So it gets run once, by hand, on the day it is written — and after that nobody dares touch it.

dolphin is octo's test runner, and it removes the reason not to touch it. A test is a debug config with assertions: the same input, the same mocks, the same spies you would pass to octo invoke by hand, plus what should have happened. The mocks are what make the flow runnable anywhere — the HTTP call, the LLM, the database write never happen — and the assertions are what make running it mean something.

Tests live beside the flow, named for it the way Go names its own: orders.yaml is tested by orders_test.yaml. octo skips _test.yaml when it loads a directory, so a suite can sit next to the flows it exercises without ever being mistaken for one.

Set up

task build                       # builds bin/octo and bin/dolphin
export OCTO_PATH=$PWD/bin/octo   # dolphin runs your tests by running the real octo

dolphin shells out to octo, so it has to find one: $OCTO_PATH, then ./octo, then your PATH. See installation.

A first suite

samples/error-handling.yaml charges a card over HTTP and has a flow-level error: chain to catch the failure. Its payments connector points at a discard port, so the real call always fails to connect — fine for a demo, useless for a test, because "it failed" is the only outcome it can produce.

Mocking that one block is what lets the same flow show both paths:

flow: charge-flowlevel

# Every case runs with this, unless it says otherwise. This is where "no test in
# this file ever reaches the payment API" is said once.
mocks:
  charge-flowlevel.call-charge:
    cases:
      - when: 'body.amount > 100'
        error: card declined
    default:
      body: { id: ch_1, status: captured }

inputs:
  small:
    data: { amount: 10 }
  large:
    data: { amount: 500 }

cases:
  - name: a charge the bank accepts comes back captured
    input: small
    expect:
      body: { id: ch_1, status: captured }
    spies:
      charge-flowlevel.call-charge:
        count: 1
        records:
          - input:
              that: ['body.amount == 10']
            output:
              body: { id: ch_1, status: captured }

  # The point of the sample: a failing block redirects to the flow's `error:` chain,
  # whose output BECOMES the flow result — so the flow completes rather than failing.
  - name: a declined card takes the flow error path and answers 502
    input: large
    expect:
      vars: { httpStatus: 502 }
      that:
        - 'body.error.contains("card declined")'
        - 'body.failedBlock == "call-charge"'
    spies:
      charge-flowlevel.call-charge:
        count: 1
        records:
          - error: card declined

The same mock, written in the editor's Testing tab rather than by hand — it is the same file either way:

Point dolphin at the flow and it finds the suite beside it:

./bin/dolphin test samples/error-handling.yaml

ok   samples/error-handling_test.yaml  (charge-flowlevel)  73ms

2 passed, 0 failed, 0 errored, 0 skipped  (73ms)

Two things happened that are worth naming. The declined case asserts on body.failedBlock — a mocked failure is indistinguishable from the real block failing, so an error chain that branches on which block died behaves exactly as it would in production. And the spy proves the block was reached with the right amount and that it failed: without it, a flow that skipped the charge entirely and returned the error body for some other reason would still pass.

When it fails

This is the part that decides whether a test runner is worth having. Change the expected httpStatus to 500 and run it again:

FAIL samples/error-handling_test.yaml  (charge-flowlevel)  44ms
  --- FAIL: a declined card takes the flow error path and answers 502 (22ms)
        expect.vars.httpStatus: want 500, got 502
        reproduce: bin/octo invoke --config samples/error-handling.yaml \
          --flow charge-flowlevel \
          --run-debug-config /tmp/dolphin-2432200989/error-handling_test.1.yaml \
          --timeout 30s --envelope-out /tmp/dolphin-2432200989/error-handling_test.1.outcome.json

1 passed, 1 failed, 0 errored, 0 skipped  (44ms)

the runs are in /tmp/dolphin-2432200989

The editor reports the same failure, because it runs the same binary — the verdict does not depend on where you pressed the button:

The failure names the case, says what it wanted and what it got — and hands you a real, runnable octo command that reproduces it. The debug config for a failing case is deliberately kept (a command pointing at a file we deleted is not a command), so you can edit it, re-run it, break on a block inside it. That command is the single biggest thing driving the real binary buys: a failing test in CI is one paste away from a debugging session on your laptop.

Prove the loop looped

spies are how you assert on what happened inside the flow, not just what came out of it. A block in a foreach body is crossed once per item, and every crossing is recorded — so the count is the iteration count.

samples/builtins-demo.yaml seeds two orders and classifies each against a threshold:

flow: demo

# The flow's source is a cron ticker. Sources do not run under `invoke`, so the
# message the ticker would have produced is supplied here instead.
inputs:
  ticked:
    data: { firedAt: "2026-07-10T12:00:00Z" }

cases:
  - name: it seeds two orders and classifies each against the threshold
    input: ticked
    expect:
      body:
        firedAt: "2026-07-10T12:00:00Z"
        orders:
          - { id: 1, amount: 50 }
          - { id: 2, amount: 250 }
      that:
        - '!has(vars.threshold)' # drop-threshold cleaned the scratch variable up
    spies:
      demo.each-order[body].classify-order:
        count: 2
        records:
          - input:
              that: ['vars.order.id == 1', 'vars.order.amount == 50']
          - input:
              that: ['vars.order.id == 2', 'vars.order.amount == 250']

  - name: an empty order list takes the else branch and never classifies
    input: ticked
    mocks:                       # overrides the address for this case only
      demo.seed-orders:
        default:
          body: { firedAt: "2026-07-10T12:00:00Z", orders: [] }
    spies:
      demo.each-order[body].classify-order:
        count: 0                 # the assertion: the foreach body never ran
    expect:
      body: { firedAt: "2026-07-10T12:00:00Z", orders: [] }

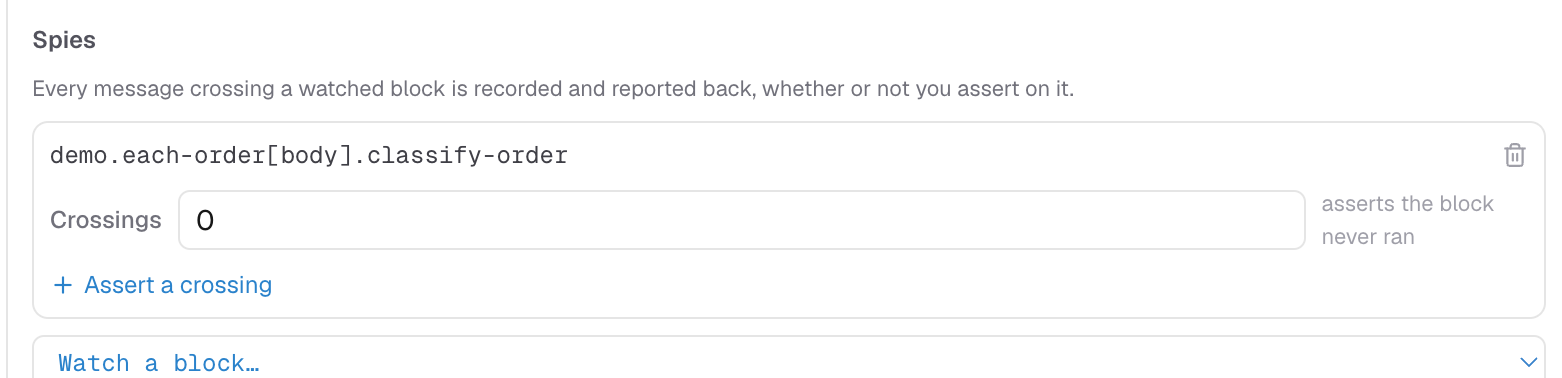

count: 0 is an assertion, and a valuable one — it is how a case proves a branch was not taken or an error path not reached. Records are positional: the first entry is the first crossing. Asserting on fewer crossings than happened is fine; naming more than happened is a failure.

Addresses are the same block-address grammar the debugging flags use, and they work unquoted as YAML keys.

What a case asserts

Omitting expect entirely still asserts something: the flow completed and did not fail.

dropped and error are exclusive with each other and with the message fields — a flow that dropped or failed returned no message to check.

Why body is exact but vars is a subset. The body is the flow's answer, and a test should fail when a field appears in it that nobody expected. Variables are scratch space that the engine and the blocks add to, so pinning the whole map would break on every unrelated change. Reach for that: ['vars.size() == 2'] when you do want it exact.

The CEL is the same CEL every block in the flow uses, over the same variables: body, vars, eventID, correlationID, now.

The environment

A config's env is resolved when the config is loaded, before any block runs. So a flow whose connector reads ${ANTHROPIC_API_KEY} cannot even be built without one — and mocking the block that would use it does not help, because the mock replaces the block long after the connector was configured.

Give the suite its own environment:

env:
  ANTHROPIC_API_KEY: test-key
  DB_DSN: 'file::memory:'

A test key belongs there in plain sight: it is fake by construction, so it can be read, reviewed, and committed. For a value several suites share, put it in a file and pass --env-file — a suite's own env: still wins over it, and both win over whatever you happen to have exported.

Things worth knowing

• One case is one octo process. The debug seam is a config rewrite — mocks and spies are baked into the flow tree when it is built — so a service can only ever serve the case it was built for. That is not a cost we chose; it is what the seam is. It also means cases are fully isolated, and dolphin runs them in parallel (one per CPU; --parallel 1 to serialize).
• Sources do not run under invoke. No cron ticks, no HTTP request arrives, no queue delivers. Nothing populates the message for you, so a case seeds what the source would have produced — including the variables an HTTP source copies out of the request. That is what input.vars is for.
• Mocking a composite removes everything inside it. The mock replaces the block, and its whole subtree goes with it. So you cannot mock an ai-router and then assert on which route ran — the routes are gone. Mock a block inside the composite instead (charge.resilient-charge[process].build-charge): the composite runs for real, and only the leaf is stood in for.
• A message matching no mock case fails the block. It does not fall through to the real one, which is no longer in the flow. Give the spec a default when you want a catch-all — a "mocked" call that quietly still reached the network would be the exact bug mocking exists to prevent.
• skip: "a reason" reports the case as skipped and never runs it. The reason is required, because a skip with no reason is a test nobody will ever come back to.
• A cache-scope hit skips its body. Each case is a fresh process with an empty in-memory cache, so a case can only ever exercise the miss.

The schema

To have your editor complete a suite and a validator check it:

./bin/dolphin schema --format yaml

It is the same shape this guide walks through, described field by field — and it is drift-tested against the Go structs, so it cannot quietly fall out of date. The test file reference is that schema, rendered.

See also

• Test file reference — every key of a suite, field by field.
• Running tests — dolphin test's flags, the exit codes, and CI.
• Debugging a flow — the mocks, spies, and breakpoints a test is built out of, driven by hand.
• Testing in the editor — the same suites, written in a form and run from the Testing tab.
• CLI reference — the full mock spec and address grammar.
