Secure an MCP Server with OAuth

An MCP server built with mcp-router is just an HTTP route, so you secure it the way the MCP specification expects: as an OAuth 2.0 protected resource. Two blocks and one extra flow give you the whole thing:

1. A jwt-validate block in front of the router verifies the bearer token and answers unauthenticated requests with a 401 plus a WWW-Authenticate challenge.
2. A second flow serves the protected resource metadata document (RFC 9728), which tells MCP clients which authorization server to run their OAuth flow against.

This page walks through a real production integration: contacts-mcp, an MCP server exposing a contacts database (five SQL tools and four prompts) behind OAuth, deployed at contacts.example.com with an OIDC issuer at auth.example.com.

The protected flow

The MCP flow chains jwt-validate before mcp-router. jwt-validate is a filter: on a missing or invalid token it stops the flow with a 401 — the router never runs. On success it stores the verified claims in vars.jwt (and the subject in vars.sub) and lets the message through.

service:
  name: contacts-mcp
env:
  - name: HTTP_PORT
    default: "8080"
  - name: SUPABASE_DSN
    required: true
  - name: OIDC_ISSUER
    default: https://auth.example.com
  - name: MCP_RESOURCE_URL
    default: https://contacts.example.com/mcp
  - name: RESOURCE_METADATA_URL
    default: https://contacts.example.com/.well-known/oauth-protected-resource/mcp
resources:
  templates:
    - resource: prompts/add_contact.md
      as: add_contact_prompt
    - resource: prompts/find_contact.md
      as: find_contact_prompt
    - resource: prompts/update_contact_info.md
      as: update_contact_prompt
    - resource: prompts/directory_overview.md
      as: directory_overview_prompt
    - resource: templates/protected-resource-metadata.json
      as: protected_resource_metadata
connectors:
  - name: api
    type: http
    settings:
      port: ${HTTP_PORT}
  - name: db
    type: database
    settings:
      driver: postgres
      dsn: ${SUPABASE_DSN}
      maxOpenConns: 5
      connMaxLifetime: 5m
flows:
  - name: mcp
    source:
      connector: api
      type: http
      settings:
        path: /mcp
        headers:
          - Authorization
        responseHeaders:
          - WWW-Authenticate
    process:
      - type: jwt-validate
        settings:
          mode: discover
          tokenHeader: Authorization
          claimsVar: jwt
          disableWwwAuthenticate: false
          issuer: ${OIDC_ISSUER}
          resourceMetadataUrl: ${RESOURCE_METADATA_URL}
      - type: mcp-router
        name: contacts-router
        serverName: contacts
        tools:
          # ... five SQL-backed tools, shown below
        prompts:
          # ... four prompts, shown below

Two source settings are load-bearing:

• headers: [Authorization] — the HTTP source only copies listed request headers into vars, and jwt-validate reads the bearer token from the Authorization variable. Without this line, every request looks unauthenticated.
• responseHeaders: [WWW-Authenticate] — when jwt-validate rejects a request it sets the challenge in vars; the source only emits response headers it is told to. Without this line, clients get a bare 401 and never learn how to authenticate.

What jwt-validate does

• mode: discover resolves signing keys by OIDC discovery: it fetches <issuer>/.well-known/openid-configuration and the JWKS it points at. Alternatives are mode: jwks (a direct jwksUrl) and mode: inline (a PEM key via publicKey or publicKeyResource). Keys are resolved lazily on the first request, so a briefly unreachable provider does not fail startup.
• issuer is the expected iss claim and the discovery URL. Set audience too when your authorization server stamps a resource-specific aud — it stops tokens minted for another API from being replayed here.
• claimsVar: jwt stores the verified claims map in vars.jwt and the subject in vars.sub. Everything after the block — including every mcp-router tool branch — can read them for authorization decisions (vars.jwt.email, vars.sub, roles, and so on).
• resourceMetadataUrl adds a resource_metadata="…" parameter to the challenge, which is what makes the endpoint an MCP-compliant protected resource.

On rejection the block responds with status 401 (configurable via rejectStatus), a {"error": "unauthorized"} body, and a challenge like:

WWW-Authenticate: Bearer realm="https://auth.example.com", resource_metadata="https://contacts.example.com/.well-known/oauth-protected-resource/mcp"

A token that is present but invalid (expired, wrong audience, bad signature) gets the same challenge with an extra error="invalid_token" parameter, per RFC 6750.

The metadata flow

MCP clients follow the resource_metadata URL from the challenge to learn where to get a token. A second, deliberately unprotected flow serves that document from a JSON template:

  - name: protected-resource-metadata
    source:
      connector: api
      type: http
      settings:
        path: /.well-known/oauth-protected-resource/mcp
    process:
      - type: template-resource
        name: render-metadata
        settings:
          id: protected_resource_metadata
          rawBody: true
          contentType: application/json

{
  "resource": "{{ env.MCP_RESOURCE_URL }}",
  "authorization_servers": ["{{ env.OIDC_ISSUER }}"],
  "bearer_methods_supported": ["header"]
}

This is the RFC 9728 shape: resource is the identifier of the MCP server itself (its public /mcp URL), and authorization_servers names the OIDC issuer clients should register with and request tokens from. The path is scoped per the MCP spec — for a resource at <origin>/mcp, clients look under /.well-known/oauth-protected-resource/mcp.

The handshake, end to end

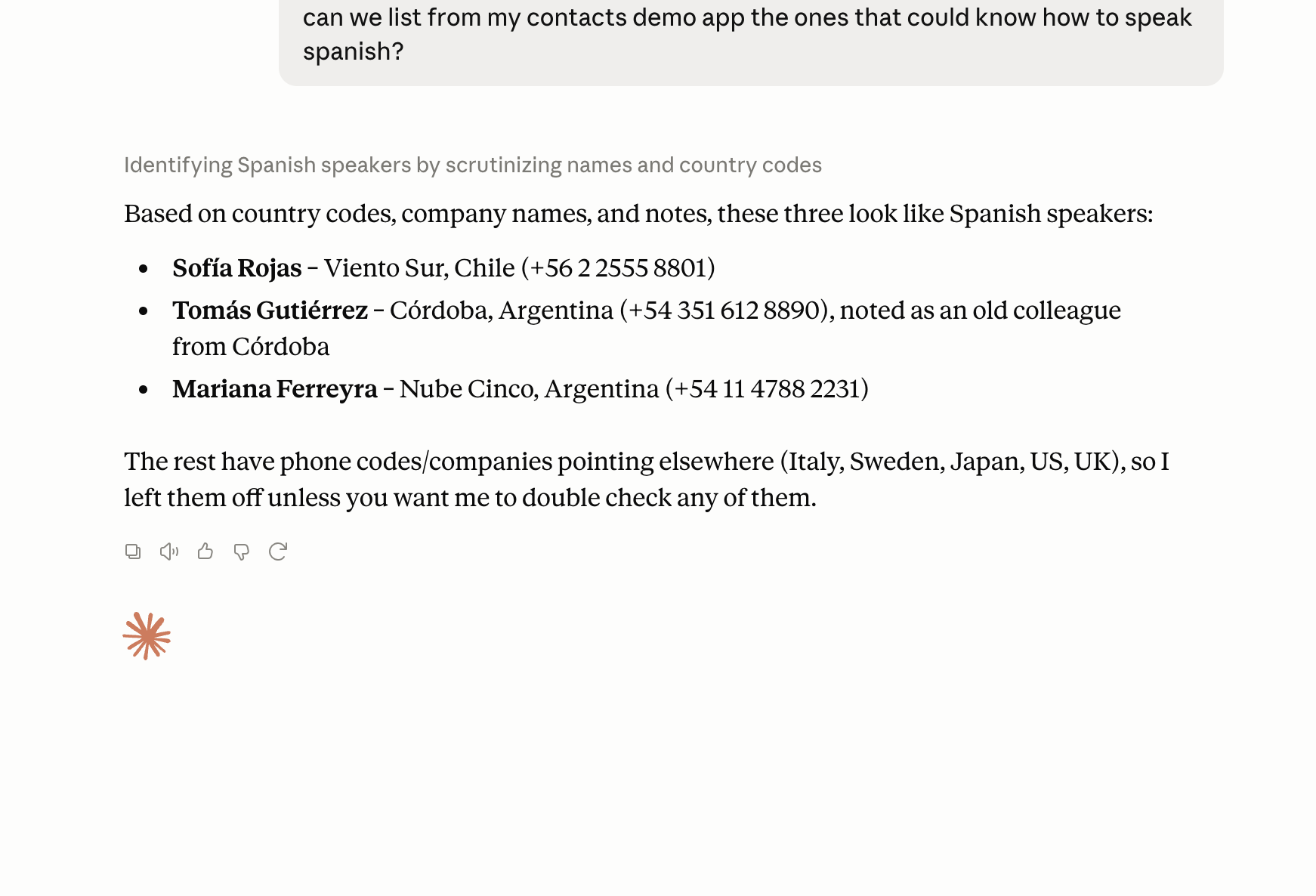

Here is what happens when you add https://contacts.example.com/mcp to an MCP client like Claude:

No token-handling code anywhere: the client, the authorization server, and two declarative blocks do all of it.

The payload: SQL tools and prompts

Behind the auth wall, contacts-mcp is an ordinary mcp-router. Its five tools are each a single sql block against the db postgres connector. Here is create_contact in full — note the has() ternaries that turn optional MCP arguments into SQL NULLs:

tools:
  - name: create_contact
    description: Create a new contact. first_name is required; all other fields are
      optional. Returns the created contact including its generated id.
    inputSchema: |
      {
        "type": "object",
        "required": ["first_name"],
        "properties": {
          "first_name": { "type": "string" },
          "last_name":  { "type": "string" },
          "email":      { "type": "string" },
          "phone":      { "type": "string" },
          "company":    { "type": "string" },
          "notes":      { "type": "string" }
        }
      }
    process:
      - type: sql
        name: insert-contact
        settings:
          connector: db
          single: true
          query: >
            insert into contacts (first_name, last_name, email, phone,
            company, notes)

            values ($1, $2, $3, $4, $5, $6)

            returning *
          args:
            - body.first_name
            - "has(body.last_name) ? body.last_name : null"
            - "has(body.email) ? body.email : null"
            - "has(body.phone) ? body.phone : null"
            - "has(body.company) ? body.company : null"
            - "has(body.notes) ? body.notes : null"

The other four follow the same pattern:

• get_contact — select * from contacts where id = $1 with single: true; returns the contact or null.
• list_contacts — a paged ilike search across first_name, last_name, email, and company, with limit/offset defaulting to 50/0 via has() ternaries.
• update_contact — a partial update: coalesce($n, column) per field, so omitted arguments keep their current values; returning *.
• delete_contact — exec: true, returning { rowsAffected }.

Four prompts round out the server — add_contact, find_contact, update_contact_info, and directory_overview — each a template resource that primes the client's model to use the tools. For example, prompts/add_contact.md takes a free-text details argument and instructs the model to extract the fields and call create_contact:

I'd like to add a new contact to the contacts database.

Here are the details I have:

{{ body.details }}

Please pull out the person's first name, last name, email, phone, company, and
any notes from that description, then call the `create_contact` tool to save
them. First name is required — if you can't find one, ask me before saving.
When it's done, show me the created contact (including its new id) and confirm
what you stored.

Where to go next

• Expose an MCP Server — the mcp-router block reference this page builds on.
• samples/jwt-validate.yaml in the repo is a minimal, runnable version of this pattern: one protected /me endpoint plus the metadata flow, ready to point at any OIDC issuer.
• Validation and Auth — request validation patterns beyond JWTs.
