Architecture

The platform is a control plane — the Next.js platform app, the Go orchestrator, Postgres, NATS, and a log aggregator — and a data plane where every deployed integration runs as its own Kubernetes Deployment of the same octo-runtime image. This page maps the components and traces the main request paths between them.

Component map

                you (browser)
                     │ HTTPS (Traefik ingress)
                     ▼
   ┌───────────────────────────────────────┐
   │ Platform app (apps/platform)  :3000   │  Next.js editor + BFF
   │  Auth.js OIDC session · server proxy  │
   └──────────────┬────────────────────────┘
                  │ HTTP (server-side only)
                  ▼
   ┌───────────────────────────────────────┐        ┌────────────────┐
   │ Orchestrator (Go)             :8090   │───────▶│ Kubernetes API │
   │  integrations · deployments · KV      │ applies└──────┬─────────┘
   │  snapshots · secrets · users · keys   │ manifests     │ creates
   └───────┬──────────────────────┬────────┘               ▼
           │ SQL                  │ publishes   ┌──────────────────────────┐
           ▼                      ▼             │ Runtime pods (data plane)│
   ┌──────────────┐        ┌───────────┐       │  one Deployment per      │
   │ Postgres     │        │ NATS      │◀──────│  deployed integration    │
   │  :5432       │        │  :4222    │ queues│  (octo-runtime image)    │
   └──────────────┘        └─────┬─────┘ logs  └──────────────────────────┘
           ▲                     │ internal.logs
           │ SQL                 ▼
           │              ┌──────────────┐
           └──────────────│ Log          │
                          │ aggregator   │  :8091
                          └──────────────┘

All control-plane components run in one namespace (octo-dev by default) and are wired by the Helm chart.

Platform app (apps/platform)

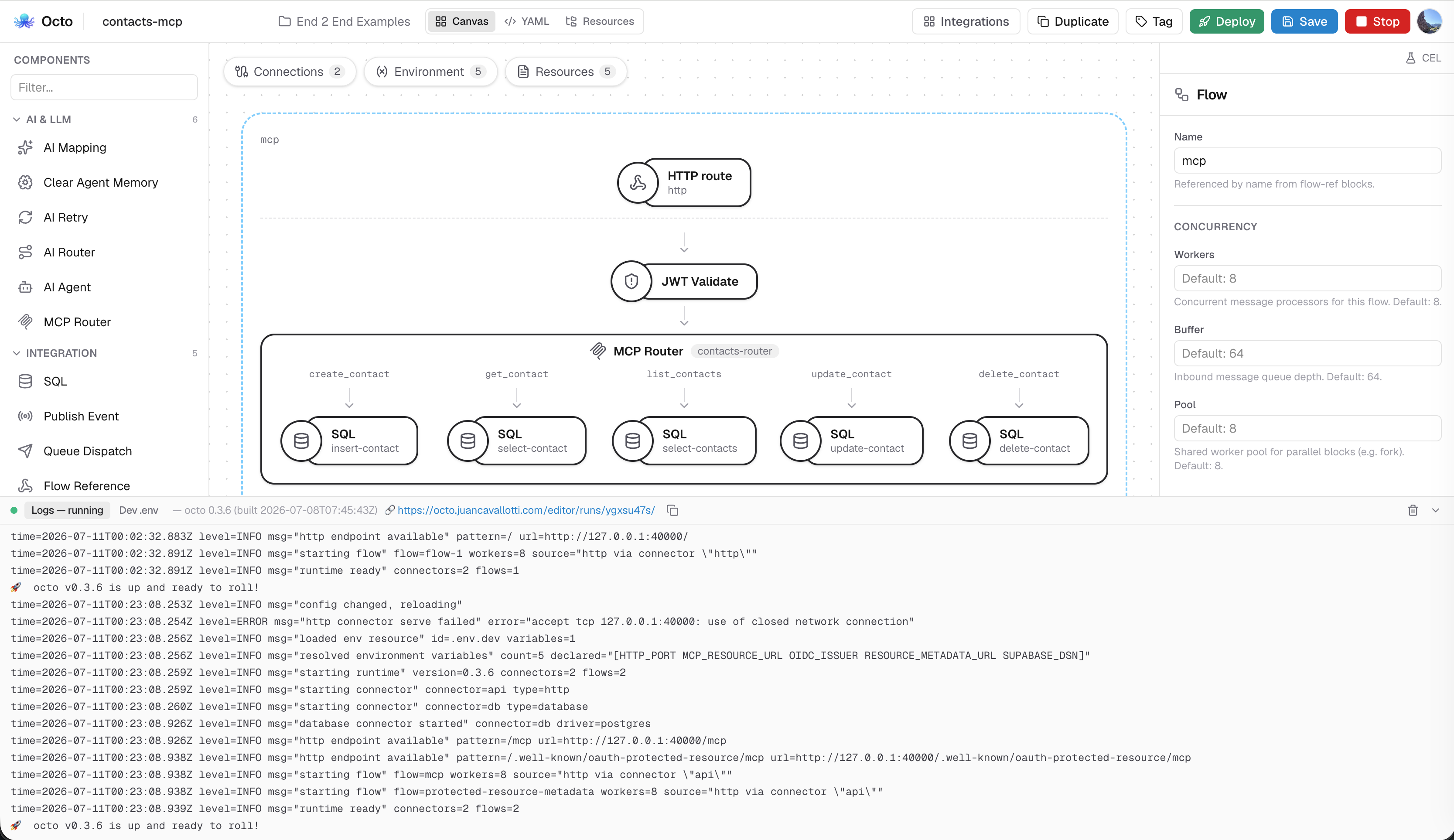

A Next.js App Router application that serves the visual editor and every platform view. It is also the backend-for-frontend: the browser never calls the orchestrator directly. Server actions and route handlers under app/api proxy every call using the server-only ORCHESTRATOR_URL, so the orchestrator needs no CORS, no public exposure, and no authentication of its own.

Authentication is Auth.js (NextAuth) with an OIDC provider and JWT sessions — no database adapter, so the same config backs both the route handlers and the request proxy (proxy.ts), which redirects unauthenticated browser navigations to sign-in and answers unauthenticated /api/* calls with a 401. Two paths bypass the session gate because they carry their own authentication: /mcp (bearer tokens) and the run proxy under /editor/runs/. See Users and API Keys.

Orchestrator (orchestrator/)

A Go HTTP API, listening on port 8090 by default (PORT). It owns all persistent state in Postgres and is the only component with Kubernetes API access. Its feature modules register REST routes on a single mux:

The wiring is graceful: without DATABASE_URL only /healthz (and a degraded /db-version) serve; outside a cluster the deployment and secret routes stay disabled while everything database-backed still works.

The orchestrator trusts the platform app as its authentication boundary — the acting user's id is forwarded in request bodies (actorId) from the authenticated session, not verified as a credential. Keep the orchestrator internal (ClusterIP); the chart does.

Postgres

The system of record, applied idempotently from sql/schema.sql by a schema Job on every install/upgrade. Main tables: integrations, integration_idx_structure + integration_folder_members (folders), integration_snapshots + integration_resource_snapshots (version tags), integration_resources (live env files/templates), integration_deployments, cluster_secrets (names only — values live in Kubernetes), kv_store, users, api_keys, and logs.

NATS

Core NATS (no JetStream) is the message backbone between planes. It carries three kinds of traffic on disjoint subject spaces: deployment-scoped runtime queues and topics (octo.{deploymentId}.q.* / .t.*), log shipping (internal.logs), and control-plane events (internal.deployments.*, internal.integrations.events). See Event Bus.

Log aggregator

A small Go service (logs/, port 8091) that consumes internal.logs as a competing consumer (so replicas scale safely), persists each structured record to the logs table, and serves the query API behind the platform's logs view. See Monitoring.

Runtime pods

Each deployed integration becomes one Kubernetes Deployment of the generic octo-runtime image with the frozen definition mounted from a ConfigMap. The orchestrator injects RUNTIME_SERVICES_MODULE=k8s plus the deployment id, its own URL, and the NATS URL, so the same image self-configures for clustered state, queues, leader election, and log shipping. See Deployments and Clustering.

Request paths

Three examples show how the pieces interact.

Saving an integration

1. You edit a flow and save. The browser calls a server action on the platform app; the action requires an authenticated session (and a write role, when configured).
2. The BFF calls PUT /integrations/{id} on the orchestrator with the new name/definition and the acting user's id.
3. The orchestrator validates the name (unique, case-insensitive), writes the row to Postgres, stamps updated_by, and returns the stored integration.

Deploying an integration

1. The deploy dialog fetches GET /integrations/{id}/deployments/options for the chosen tag: declared env vars, which of them the tag's .env resources already satisfy, and a suggested free slug.
2. On confirm, the BFF calls POST /integrations/{id}/deployments with the settings (snapshot id, replicas, slug, env bindings, exposure).
3. The orchestrator resolves the tag's frozen definition, verifies every required env var is provided, records the deployment row, then creates the cluster resources: a ConfigMap, a Deployment of octo-runtime, and — for HTTP integrations — Services and optionally an Ingress. A Kubernetes failure rolls everything back.
4. Kubernetes informers watch the new pods. On each change the orchestrator recomputes the integration's deployment list and publishes it to NATS on internal.deployments.{integrationId}; the BFF's SSE route relays it to the browser, which shows the pods going ready live.

Invoking a deployed integration

• From another integration in the cluster: call the deployment's stable internal Service, http://octo-int-{slug}.{namespace}:{port} — load-balanced across the deployment's replicas.
• From the public internet (externally exposed deployments): the request hits Traefik at https://{subdomain}.{baseDomain}, matches the deployment's Ingress (TLS from cert-manager or a shared wildcard certificate), and is routed to the per-deployment Service and on to a runtime pod.
• Inside the pod, the runtime's HTTP source handles the request exactly as it would standalone — the flow YAML is identical in both worlds.
